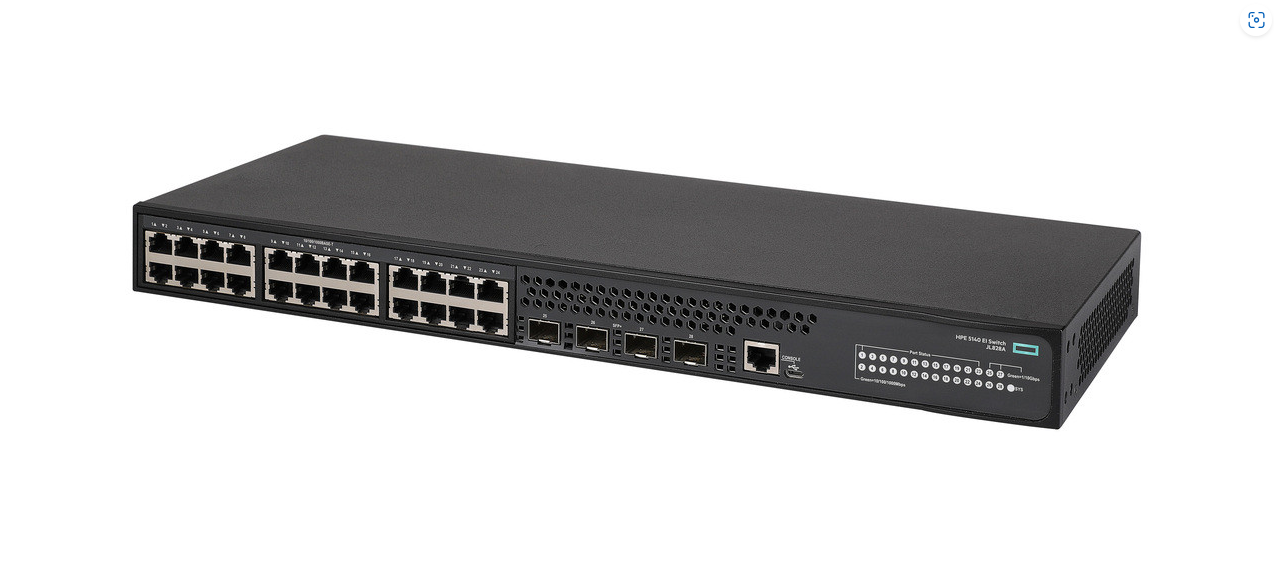

HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140
Power consumption60W (Maximum), 30W (Idle)
Notes:
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Power ratings for AC power supply is indicated previously.
For DC input power, idle power is 38W and maximum is 68W.
DC maximum input current is 8A. Units are supplied without a power supply.
Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply.
Heat dissipationMaximum: 102/204 BTU/hr. (107.61/215.22 kJ/hr.) for AC powered units.
For DC powered units, heat dissipation is 130 BTU/hr. minimum, 232 BTU/hr. maximum.
Input voltageAC Voltage: 100 VAC–240 VAC
DC Voltage: –48 VDC to –60 VDC
Ports16 SFP 100/1000 Mbps ports;
8 SFP dual-personality ports—10/100/ 1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports;
4 SFP+ fixed 1000/10000 SFP+ ports;
1 RJ-45 serial console port
Latency1000 Mb latency: < 5 µs
10 Gbps latency: < 3 µs
Routing capabilitiesTable Size: 1024 entries;
MAC address: 16,384 entries IPv6 Ready Certified
Switching capacity128 Gbps
Stacking capabilitiesIRF 9 switches
Throughput95 Mpps
Memory and processor512 MB SDRAM, 256 MB flash
Power supply nameAt least 1 power supply is required (not included, must be ordered separately)
PoE capability370W PoE+ Maximum, depending on model
Operating temperature23°F to 113°F (–5°C to 45°C)
Management featuresHPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager
WarrantyLimited lifetime warranty. See the warranty duration guide.
Detailed product description24 SFP ports (Of the 24, 8 are dual-personality ports - autosensing 10/100/1000BASE-T or SFP) min=0 max=24 SFP Transceivers
4 SFP+ ports min=0 max=4 SFP+ Transceivers
Must select min 1 power supply
1U - Height
Weight6 kg (13.23 lbs)
Dimensions4.36 x 44 x 36 cm (1.72 x 17.32 x 14.17 in)
