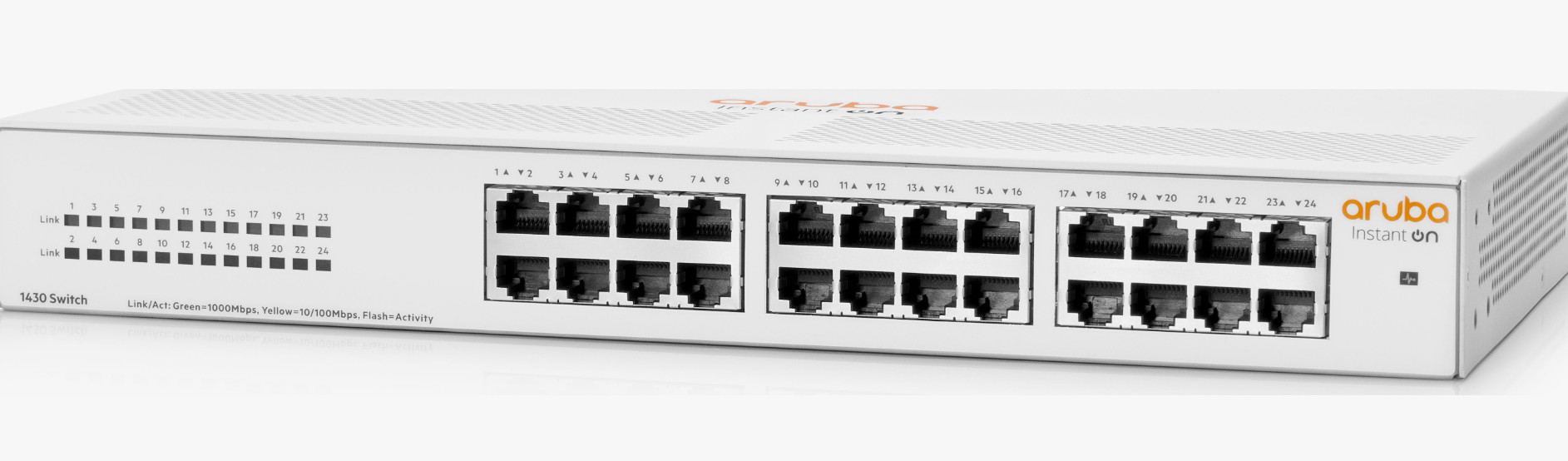

HPE Networking Instant On 1430 26G 2SFP Switch (R8R50A) |
|
||
|
I/O ports and slots |
26 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
|
|
|
Physical Characteristics |
|
||
|
Dimensions |
225(d) x 388(w) x 44(h) mm |
|
|
|
Weight |
5.00 lb (2.27 kg) |
|
|
|
Processor and Memory |
32Mb Flash; Packet buffer size: 12.0 Mb |
|
|
|
Performance |
|
|
|
|
100 Mb latency |
< 5.21 μSec |
|
|
|
1000 Mb latency |
> 2.90 μSec |
|
|
|
Throughput (Mpps) |
41.68 Mpps |
|
|
|
Capacity |
56 Gbps |
|
|
|
MAC address table size |
16384 entries |
|
|
|
Reliability MTBF (years) |
171.9 |
|
|
|
Environment |
|
||
|
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
|
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) non-condensing |
|
|
|
Nonoperating/ storage temperature |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft |
|
|
|
Nonoperating/ storage relative humidity |
15% to 95% @ 149°F (65°C) non-condensing |
|
|
|
Altitude |
up to 10,000 ft (3 km) |
|
|
|
Acoustics |
Fanless |
|
|
|
Electrical Characteristics |
|
||
|
Frequency |
50Hz/60Hz |
|
|
|
AC voltage |
100-127VAC / 200- 240VAC |
|
|
|
Current |
0.4A / 0.3A |
|
|
|
Maximum power rating |
16.4W |
|
|
|
Idle power |
8W |
|
|
|
PoE power |
– |
|
|
|
Power Supply |
Internal Power Supply |
|
|
|
Safety |
·EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 ·EN/IEC 62368-1, 2nd. & 3rd. Ed. ·UL 62368-1, 3rd. Ed. ·CAN/CSA C22.2 No. 62368-1, 3rd. Ed. ·EN/IEC 60825- 1:2018 |
|
|
|
Emissions |
·EN 55032:2015/ CISPR 32, Class A ·FCC CFR 47 Part 15: 2018, Class A ·ICES-003, Class A ·VCCI-32, Class A ·CNS 13438, Class A ·KS C 9832, Class A ·AS/NZS CISPR 32, Class A |
|
|
|
Immunity |
BS/EN 55035, CISPR 35, KS C 9835 |
|
|
|
Generic |
EN 55035, CISPR 35 |
|
|
|
EN |
EN/IEC 61000-4-2 |
|
|
|
ESD |
EN/IEC 61000-4-3 |
|
|
|
Radiated |
EN/IEC 61000-4-4 |
|
|
|
EFT/Burst |
EN/IEC 61000-4-5 |
|
|
|
Surge |
EN/IEC 61000-4-6 |
|
|
|
Conducted |
EN/IEC 61000-4-8 |
|
|
|
Power frequency magnetic field |
EN/IEC 61000-4-11 |
|
|
|
Voltage dips and interruptions |
EN/IEC 61000-3-2 |
|
|
|
Harmonics |
EN /IEC 61000-3-3 |
|
|
|
Device Management |
Unmanaged |
|
|
|
Mounting |
|
||
|
Mounting positions and supported racking |
·Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included ·Supports table-top mounting ·Supports rack-mounting using the brackets provided ·Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided ·Supports under-table mounting using the brackets provided ·Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down |
|
|
|
Transceivers |
·HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver (J4859D) ·HPE Networking Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
|
|
|
|
|
||
|
|
|||
|
IEEE 802.3i |
10 Mbps Ethernet |
|
|
|
IEEE 802.3u |
100Base-T Ethernet |
|
|
|
IEEE 802.3z |
1000 Mbps Ethernet |
|
|
|
IEEE 802.3ab |
1000Base-T |
|
|
|
IEEE 802.3af |
PoE1 (PoE models only) |
|
|
|
IEEE 802.3at |
PoE1 (PoE models only) |
|
|
|
IEEE 802.3x |
Flow Control |
|
|
|
IEEE 802.3az |
Energy Efficient Ethernet |
|
|
|
RFC 2474 |
QoS diffserv (DSCP) mapping |
||
